Quick Connect Chassis 10A Inline Fuse Holder R3-13 For 6.35x31.8mm Glass Fuses
Product Details:
| Brand Name: | UCHI |
| Model Number: | R3-13 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Bulk,500pcs/Bag |
| Delivery Time: | 7-10 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000,000PCS/Month |
|
Detail Information |
|||
| Name: | Inline Fuse Holder R3-13 | Suitable Fuse: | Ø6.35x30mm / Ø6.35x31.75mm |
|---|---|---|---|
| Rated: | 10A 250V AC | Dielectrical: | AC 1500V 1 Minute |
| Insulation: | DC 500V 100mΩ Min. | Contact Res.: | 50mΩ Max |
| Highlight: | mini fuse holder,miniature fuse holder |
||
Product Description

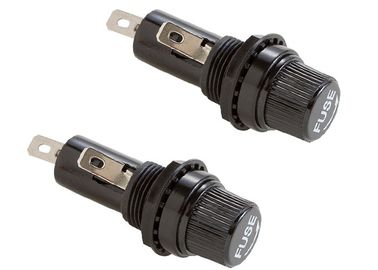

Screw Cap Quick Connect Panel Mount Chassis Inline Fuse Holder R3-13 For 6.35x31.8mm Glass Fuses 10A 250V
Description
Fuse Holder and Fuse Carrier
A fuse holder is mounted in the equipment and is designed to hold the fuse. Fuse holders can hold both North American and international sized fuses. This is based on which fuse carrier is being used. Interpower offers panel-mount fuse holders.
International “touchproof” fuse holders are a popular choice. This type of fuse holder is available in low-profile, high-profile, and low-profile/snap-in versions. Each of these are available with a variety of terminal styles including quick disconnect, solder/quick disconnect and angled versions of both. Interpower fuse holders will also accept both North American and the international fuse carrier and can be used in nearly every market worldwide. These fuse holders offer the additional benefit of being touchproof, providing more safety to the end user—the blown fuse can only be accessed from the outside of the equipment with the use of a tool and cannot touch any of the contact surfaces before the fuse carrier and fuse is removed.
Fuse Clip
A fuse clip is for internal fuses on PC boards. It takes two of the clips for one fuse.
Fuse clips are an alternative to fuse blocks, with many of the same features. Interpower fuse clips come in one size. They are PC-board mounted and accessible only from within the equipment. It has a “stop” on it, to help position the fuse when it is being inserted. No approvals are available on fuse clips, except as part of the finished product. Because they are inexpensive, they are another attractive alternative to post style and PC-board mount fuse holders. If fuse clips are used, the designer must remember that each end is a separate piece. Two clips will need to be ordered for each fuse used.
Features
Fuseholders & Accessories : R3-9 / R3-11 / R3-12 / R3-13
| Fuse Size | Ø6.35x30mm / Ø6.35x31.75mm |
| Maximum Rating | 10A 250V AC |
| Dielectric Strength | AC 1500V 1 Minute |
| Insulation Resistance | DC 500V 100mΩ Min. |
| Contact Resistance | 50mΩ Max |
| P/N | R3-13 |
Size
Conclude
Electronic equipment is often designed with built-in circuit protection. The main function is to provide protection to both the equipment and the equipment operator in the event of a circuit overload. This protection usually comes in one of two forms: a circuit breaker or a fuse. A circuit breaker is an automatic switch that prohibits the flow of electric current when it is rapidly overloaded or unusually stressed. A fuse is a safety device that protects an electric circuit from excessive current.
