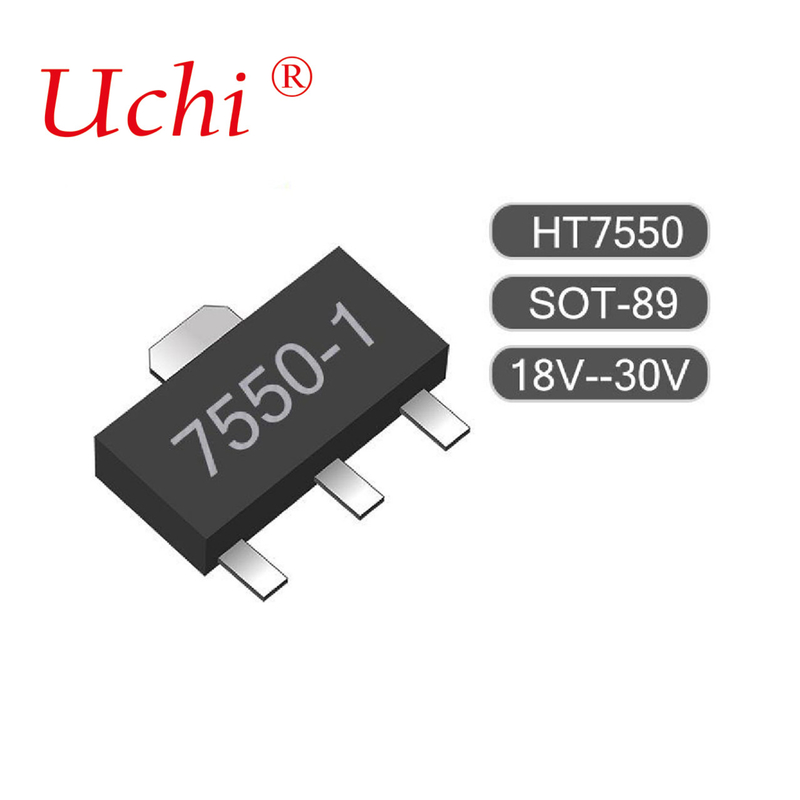

SOT89-3 HT7550-1 100mA Low Power LDO 24V In Battery Powered Equipment
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | HT7550 7530 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 3weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs |
|
Detail Information |
|||
| Highlight: | 100mA low power ldo,low power ldo 24V,Battery powered equipment low power ldo |
||
|---|---|---|---|
Product Description
SOT89-3 HT7550-1 100mA Low Power LDO

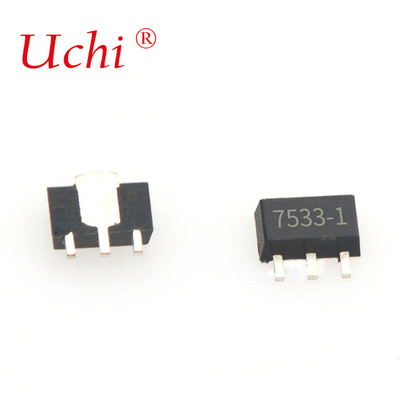

● Related product model: HT7536-1,HT7550-1,HT7536-1,HT7533-1,HT7530-1...
| Part No. | Output Voltage | Package | Marking |
| HT7530-1 | 3.0V |
TO-92 SOT-89 SOT-25 |
75XX-1 (for TO-92) 75XX-1 (for SOT-89) 5XX1 (for SOT-25) |
| HT7533-1 | 3.3V | ||
| HT7536-1 | 3.6V | ||
| HT7544-1 | 4.4V | ||
| HT7550-1 | 5.0V |
Note: ”XX”stands for output voltages.
For lead free devices, TO-92 package will add a ”#”mark at the end of the date code, whereas SOT-89 & SOT-25 packages will add a ”#”mark at the end of the marking.
Absolute Maximum Ratings
Supply Voltage ..........................................—0.3V to 26V Storage Temperature ............................—50oC to 125oC
Power Consumption (*1) .................................. 250mW Operating Temperature ...........................—40oC to 85oC
Power Consumption (*2) .................................. 150mW
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliabil- ity.
*1: applied to SOT89 and TO-92 *2: applied to SOT-25
Electrical Characteristics
HT7530-1, +3.0V Output Type Ta=25oC
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit | |
| V IN | Conditions | ||||||
| V OUT | Output Voltage Tolerance | 5V | IOUT=10mA | 2.91 | 3.0 | 3.09 | V |
| IOUT | Output Current | 5V | 60 | 100 | mA | ||
| ΔV OUT | Load Regulation | 5V | 1mA≤IOUT≤50mA | 60 | 150 | mV | |
| VDIF | Voltage Drop | — | IOUT=1mA | — | 100 | — | mV |
| ISS | Current Consumption | 5V | No load | — | 2.5 | 5 | μA |
| ΔVOUT | Line Regulation | — | 4V≤V IN≤24V IOUT=1mA | — | 0.2 | — | %/V |
| ΔVIN × VOUT | |||||||
| V IN | Input Voltage | — | — | — | — | 24 | V |
| ΔVOUT ΔTa | Temperature Coefficient | 5V |
IOUT=10mA 0oC<Ta<70oC |
— | ±0.45 | — | mV/oC |
HT7533-1, +3.3V Output Type Ta=25oC
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit | |
| V IN | Conditions | ||||||
| V OUT | Output Voltage Tolerance | 5.5V | IOUT=10mA | 3.201 | 3.3 | 3.399 | V |
| IOUT | Output Current | 5.5V | — | 60 | 100 | — | mA |
| ΔV OUT | Load Regulation | 5.5V | 1mA≤IOUT≤50mA | — | 60 | 150 | mV |
| VDIF | Voltage Drop | — | IOUT=1mA | — | 100 | — | mV |
| ISS | Current Consumption | 5.5V | No load | 2.5 | 5 | μA | |
|
ΔVOUT ΔVIN × VOUT |
Line Regulation | 4.5V≤V IN≤24V IOUT=1mA | 0.2 | %/V | |||
| V IN | Input Voltage | 24 | V | ||||
| ΔVOUT ΔTa | Temperature Coefficient | 5.5V |
IOUT=10mA 0oC<Ta<70oC |
— |
±0.5 |
— |
mV/oC |
HT7536-1, +3.6V Output Type Ta=25oC
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit | |
| V IN | Conditions | ||||||
| V OUT | Output Voltage Tolerance | 5.6V | IOUT=10mA | 3.492 | 3.6 | 3.708 | V |
| IOUT | Output Current | 5.6V | — | 60 | 100 | — | mA |
| ΔV OUT | Load Regulation | 5.6V | 1mA≤IOUT≤50mA | — | 60 | 150 | mV |
| VDIF | Voltage Drop | — | IOUT=1mA | — | 100 | — | mV |
| ISS | Current Consumption | 5.6V | No load | — | 2.5 | 5 | μA |
|
ΔVOUT ΔVIN × VOUT |
Line Regulation |
— |
4.6V≤V IN≤24V IOUT=1mA |
— |
0.2 |
— |
%/V |
| V IN | Input Voltage | — | — | — | — | 24 | V |
| ΔVOUT ΔTa | Temperature Coefficient | 5.6V |
IOUT=10mA 0oC<Ta<70oC |
— |
±0.6 |
— |
mV/oC |
HT7544-1, +4.4V Output Type Ta=25oC
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit | |
| V IN | Conditions | ||||||
| V OUT | Output Voltage Tolerance | 6.4V | IOUT=10mA | 4.268 | 4.4 | 4.532 | V |
| IOUT | Output Current | 6.4V | 60 | 100 | mA | ||
| ΔV OUT | Load Regulation | 6.4V | 1mA≤IOUT≤50mA | — | 60 | 150 | mV |
| VDIF | Voltage Drop | — | IOUT=1mA | — | 100 | — | mV |
| ISS | Current Consumption | 6.4V | No load | — | 2.5 | 5 | μA |
|
ΔVIN × VOUT |
Line Regulation |
— |
5.4V≤V IN≤24V IOUT=1mA |
— |
0.2 |
— |
%/V |
| V IN | Input Voltage | — | — | — | — | 24 | V |
| ΔVOUT ΔTa | Temperature Coefficient | 6.4V |
IOUT=10mA 0oC<Ta<70oC |
— |
±0.7 |
— |
mV/oC |
HT7550-1, +5.0V Output Type Ta=25oC
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Unit | |
| V IN | Conditions | ||||||
| V OUT | Output Voltage Tolerance | 7V | IOUT=10mA | 4.85 | 5.0 | 5.15 | V |
| IOUT | Output Current | 7V | — | 100 | 150 | — | mA |
| ΔV OUT | Load Regulation | 7V | 1mA≤IOUT≤70mA | — | 60 | 150 | mV |
| VDIF | Voltage Drop | — | IOUT=1mA | — | 100 | — | mV |
| ISS | Current Consumption | 7V | No load | — | 2.5 | 5 | μA |
| ΔVOUT | Line Regulation |
— |
6V≤V IN≤24V IOUT=1mA |
— |
0.2 |
— |
%/V |
| ΔVIN × VOUT | |||||||
| V IN | Input Voltage | — | — | — | — | 24 | V |
| ΔVOUT ΔTa | Temperature Coefficient | 7V |
IOUT=10mA 0oC<Ta<70oC |
— |
±0.75 |
— |
mV/oC |
