37mm OD Standard Gearbox BLDC Planetary Gear Motor 8 Poles
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | 37JB10K/B3630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Number Of Poles: | 8 | Operating Range: | 9V~16V/9C~24V |
|---|---|---|---|
| Rated Current MA: | 820/410 | Range Of Application: | Furniture/medical/industry |
| Certificate: | 3C | No-load Speed R/min: | 4680 |
| No-load Current MA: | 270/140 | Rated Speed R/min: | 3500 |
| Rated Power W: | 3.2 | Number Of Phase: | 3 |
| Highlight: | 37mm OD planetary gear motor,8 Poles planetary gear motor,8 Poles bldc gear motor |
||
Product Description
Permissible Load Range: 1.0N.m
Brushless Motor Technical Data
| TYPE | Number of poles |
Number of phase |
Operating Range |
Rated voltage VDC |
No- load speed r/min |
No- load current mA |
Rated torque g.cm |
Rated speed r/min |
Rated current mA |
Rated power W |
|||||||||||||
| B3630-1247 | 8 | 3 | 9V~ 16V | 12 | 4680 | 270 | 90 | 3500 | 820 | 3.2 | |||||||||||||
| B3630-2447 | 8 | 3 | 9V~26V | 24 | 4680 | 140 | 90 | 3500 | 410 | 3.2 | |||||||||||||
Brushless Gear Motor Technical Data
1.B3630-1247 BLDC Motor
| Reduction ratio | 6 | 10 | 18 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | ||||||||||||
| Number of gear trains | 2 | 2 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | ||||||||||||

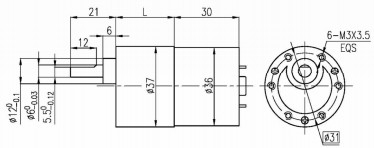

| Length(L) | mm | 21.5 | 21.5 | 26.5 | 26.5 | 29.0 | 29.0 | 29.0 | 31.5 | 31.5 | 31.5 | 31.5 | |||||||||||
| No-load speed | r/min | 780 | 468 | 260 | 156 | 94 | 62 | 47 | 31 | 23 | 19 | 16 | |||||||||||
| Rated speed | r/min | 583 | 350 | 194 | 117 | 70 | 47 | 35 | 23 | 18 | 14 | 12 | |||||||||||
| Rated torque | N.m | 0.043 | 0.071 | 0.12 | 0.19 | 0.29 | 0.43 | 0.57 | 0.78 | 1 | 1 | 1 | |||||||||||
| Max. permissible load in a short time | N.m | 0.5 | 0.5 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | |||||||||||
2.B3630-2447 BLDC Motor
| Reduction ratio | 6 | 10 | 18 | 30 | 50 | 75 | 100 | 150 | 200 | 250 | 300 | ||||||||||||
| Number of gear trains | 2 | 2 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | ||||||||||||
| Length(L) | mm | 21.5 | 21.5 | 26.5 | 26.5 | 29.0 | 29.0 | 29.0 | 31.5 | 31.5 | 31.5 | 31.5 | |||||||||||
| No-load speed | r/min | 780 | 468 | 260 | 156 | 94 | 62 | 47 | 31 | 23 | 19 | 16 | |||||||||||
| Rated speed | r/min | 583 | 350 | 194 | 117 | 70 | 47 | 35 | 23 | 18 | 14 | 12 | |||||||||||
| Rated torque | N.m | 0.043 | 0.071 | 0.12 | 0.19 | 0.29 | 0.43 | 0.57 | 0.78 | 1 | 1 | 1 | |||||||||||
| Max. permissible load in a short time | N.m | 0.5 | 0.5 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | |||||||||||
Wire Diagram
PIN 1# (Blue) Brake control
PIN 2# (Orange) PWM speed regulation: Input a 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 3# (Black) Negative pole of power supply
PIN 4# (White) Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
PIN 5# (Green) Feedback n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
PIN 6# (Red) Positive pole of power supply
Connection line length 200mm
PIN 3 # PWM speed regulation, input 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 4# Forward and reverse rotation, suspended turning is CW, and short circuiting to ground turning is CCW.
PIN 5# Negative pole of power supply
