9V-16V 36 Mm OD Brushless Dc Gearmotor 4 Poles
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | 36JXE30K/B3650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Number Of Poles: | 4 | Operating Range: | 9V~16V |
|---|---|---|---|
| Range Of Application: | Furniture/medical/industry | Certificate: | 3C |
| No-load Speed R/min: | 5300 | No-load Current MA: | 440/270 |
| Rated Speed R/min: | 4000 | Rated Power W: | 14.4/16.2 |
| Number Of Phase: | 3 | Rated Voltage VDC: | 12v/24v |
| Highlight: | 9v brushless dc gearmotor,4 Poles brushless dc gearmotor,16v brushless dc gear motor |
||
Product Description
Permissible Load Range: 0. 3N. m~ 3. 0N.m
Brushless Motor Technical Data
| TYPE | Number of poles |
Number of phase |
Operating Range |
Rated voltage VDC |
No-load speed r/min |
No-load current mA |
Rated torque g.cm |
Rated speed r/min |
Rated current A |
Rated power W |
|||||||||||||||
| B3650-1253 | 4 | 3 | 9V~ 16V | 12 | 5300 | 440 | 350 | 4000 | 2.5 | 14.4 | |||||||||||||||
| B3650-2453 | 4 | 3 | 9V~26V | 24 | 5300 | 270 | 350 | 4500 | 1.1 | 16.2 | |||||||||||||||
Brushless Gear Motor Technical Data
1.B3640-1253 BLDC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 | |||||||||||
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |||||||||||

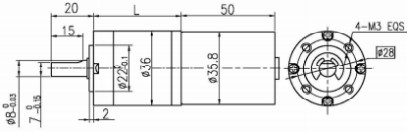

| Length(L) | mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | ||||||||||
| No-load speed | r/min | 1429 | 1023 | 379 | 279 | 196 | 104 | 75 | 53 | 38 | 29 | 24 | 21 | 17 | 15 | ||||||||||
| Rated speed | r/min | 1078 | 772 | 286 | 211 | 148 | 78 | 56 | 40 | 35 | 29 | 22 | 18 | 16 | 13 | ||||||||||
| Rated torque | N.m | 0.12 | 0.16 | 0.39 | 0.53 | 0.68 | 1.3 | 1.8 | 2.5 | 2.9 | 3 | 3 | 3 | 3 | 3 | ||||||||||
| Max. permissible load in a short time | N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 | ||||||||||
2.B3640-2453 BLDC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 181 | 219 | 254 | 306 | 354 | |||||||||||
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |||||||||||
| Length(L) | mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 | 47.4 | 47.4 | 47.4 | 47.4 | ||||||||||
| No-load speed | r/min | 1429 | 1023 | 379 | 279 | 196 | 104 | 75 | 53 | 38 | 29 | 24 | 21 | 17 | 15 | ||||||||||
| Rated speed | r/min | 1213 | 869 | 321 | 237 | 167 | 88 | 63 | 45 | 39 | 32 | 25 | 21 | 18 | 15 | ||||||||||
| Rated torque | N.m | 0.12 | 0.16 | 0.39 | 0.53 | 0.68 | 1.3 | 1.8 | 2.5 | 2.9 | 3 | 3 | 3 | 3 | 3 | ||||||||||
| Max. permissible load in a short time | N.m | 1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 | 9 | 9 | 9 | 9 | ||||||||||
Wire Diagram
PIN 1# (Blue) Brake control
PIN 2# (Orange) PWM speed regulation: Input a 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 3# (Black) Negative pole of power supply
PIN 4# (White) Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
PIN 5# (Green) Feedback n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
PIN 6# (Red) Positive pole of power supply
Connection line length 200mm
PIN 3 # PWM speed regulation, input 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 4# Forward and reverse rotation, suspended turning is CW, and short circuiting to ground turning is CCW.
PIN 5# Negative pole of power supply
