24 Mm OD bldc Planetary Gearbox Gear Motor Built In Driver
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | UCHI |
| Certification: | Completed |
| Model Number: | 24JM10K/B2430 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 5-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs stcoks |
|
Detail Information |
|||
| Number Of Poles: | 12 | Operating Range: | 9V~16V/9C~26V |
|---|---|---|---|
| Rated Current MA: | 420/210 | Range Of Application: | Furniture/medical/industry |
| Certificate: | 3C | No-load Speed R/min: | 8000 |
| No-load Current MA: | 180/100 | Rated Speed R/min: | 6000/6200 |
| Rated Power W: | 3.2 | Number Of Phase: | 3 |
| Highlight: | bldc planetary gearbox gear motor,24 Mm OD bldc gear motor,planetary gear motor Built In Driver |
||
Product Description
Permissible Load Range: 0. 1N. m~ 1. 0N.m
Brushless Motor Technical Data
| TYPE | Number of poles |
Number of phase |
Operating Range |
Rated voltage VDC |
No-load speed r/min |
No-load current mA |
Rated torque g. cm |
Rated speed r/min |
Rated current mA |
Rated power W |
|||||||||||||||
| B2430-1280 | 12 | 3 | 9V~ 16V | 12 | 8000 | 180 | 60 | 6000 | 420 | 3.7 | |||||||||||||||
| B2430-2480 | 12 | 3 | 9V~26V | 24 | 8000 | 100 | 60 | 6200 | 210 | 3.8 | |||||||||||||||
Brushless Gear Motor Technical Data
1.B2430-1280 BLDC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 | |||||||||||
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |||||||||||

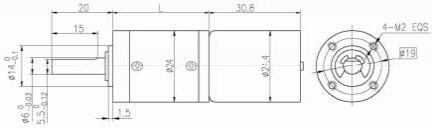

| Length(L) | mm | 25.0 | 25.0 | 31.6 | 31.6 | 31.6 | 38.0 | 38.0 | 38.0 | 38.0 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 | ||||||||||
| No-load speed | r/min | 2156 | 1544 | 571 | 421 | 296 | 157 | 113 | 80 | 58 | 42 | 30 | 22 | 16 | 11 | ||||||||||
| Rated speed | r/min | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 | 23 | 16 | 12 | 8.3 | ||||||||||
| Rated torque | N.m | 0.020 | 0.028 | 0.067 | 0.091 | 0.13 | 0.22 | 0.31 | 0.43 | 0.60 | 0.72 | 1 | 1 | 1 | 1 | ||||||||||
| Max. permissible load in a short time | N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 | 3 | 3 | 3 | ||||||||||
2.B2430-2480 BLDC Motor
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | 516 | 720 | |||||||||||
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |||||||||||
| Length(L) | mm | 25.0 | 25.0 | 31.6 | 31.6 | 31.6 | 38.0 | 38.0 | 38.0 | 38.0 | 44.4 | 44.4 | 44.4 | 44.4 | 44.4 | ||||||||||
| No-load speed | r/min | 2156 | 1544 | 571 | 421 | 296 | 157 | 113 | 80 | 58 | 42 | 30 | 22 | 16 | 11 | ||||||||||
| Rated speed | r/min | 1671 | 1197 | 443 | 326 | 230 | 122 | 87 | 62 | 45 | 33 | 23 | 17 | 12 | 8.6 | ||||||||||
| Rated torque | N.m | 0.020 | 0.028 | 0.067 | 0.091 | 0.13 | 0.22 | 0.31 | 0.43 | 0.60 | 0.72 | 1 | 1 | 1 | 1 | ||||||||||
| Max. permissible load in a short time | N.m | 0.3 | 0.3 | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3 | 3 | 3 | 3 | 3 | ||||||||||
Wire Diagram
PIN 1# (White) PWM speed regulation: Input 1-50kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 2# (Black) Negative pole of power supply
PIN 3# (Blue) Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
PIN 4# (Yellow) Feedback: n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
PIN 5# (Red) Positive pole of power supply
Explanation: (1) The red line is connected to the positive pole of the power supply, the black and white lines are connected to the negative pole, and the motor is turned to CCW. (2) Connect the red wire to the positive pole of the power supply, connect the black wire, white wire, and blue wire to the negative pole, and connect the motor
Turn towards CW. (3) The white line is connected to the negative pole, and the motor runs at full speed. When the white line is separately connected to the PWM, the speed can be adjusted. (4) The length of the connecting wire is 100mm.
PIN 3 # PWM speed regulation, input 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
PIN 4# Forward and reverse rotation, suspended turning is CW, and short circuiting to ground turning is CCW.
PIN 5# Negative pole of power supply
